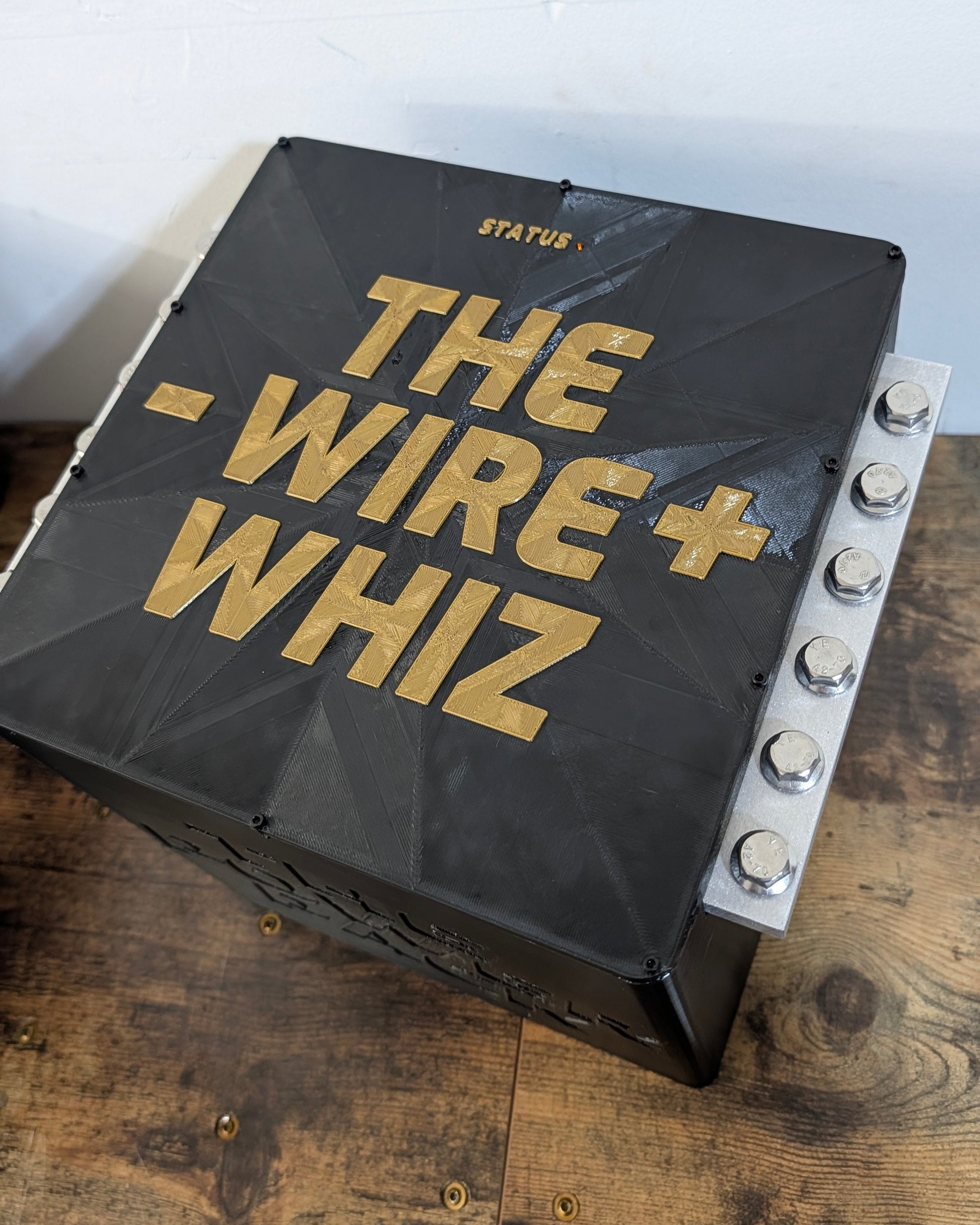

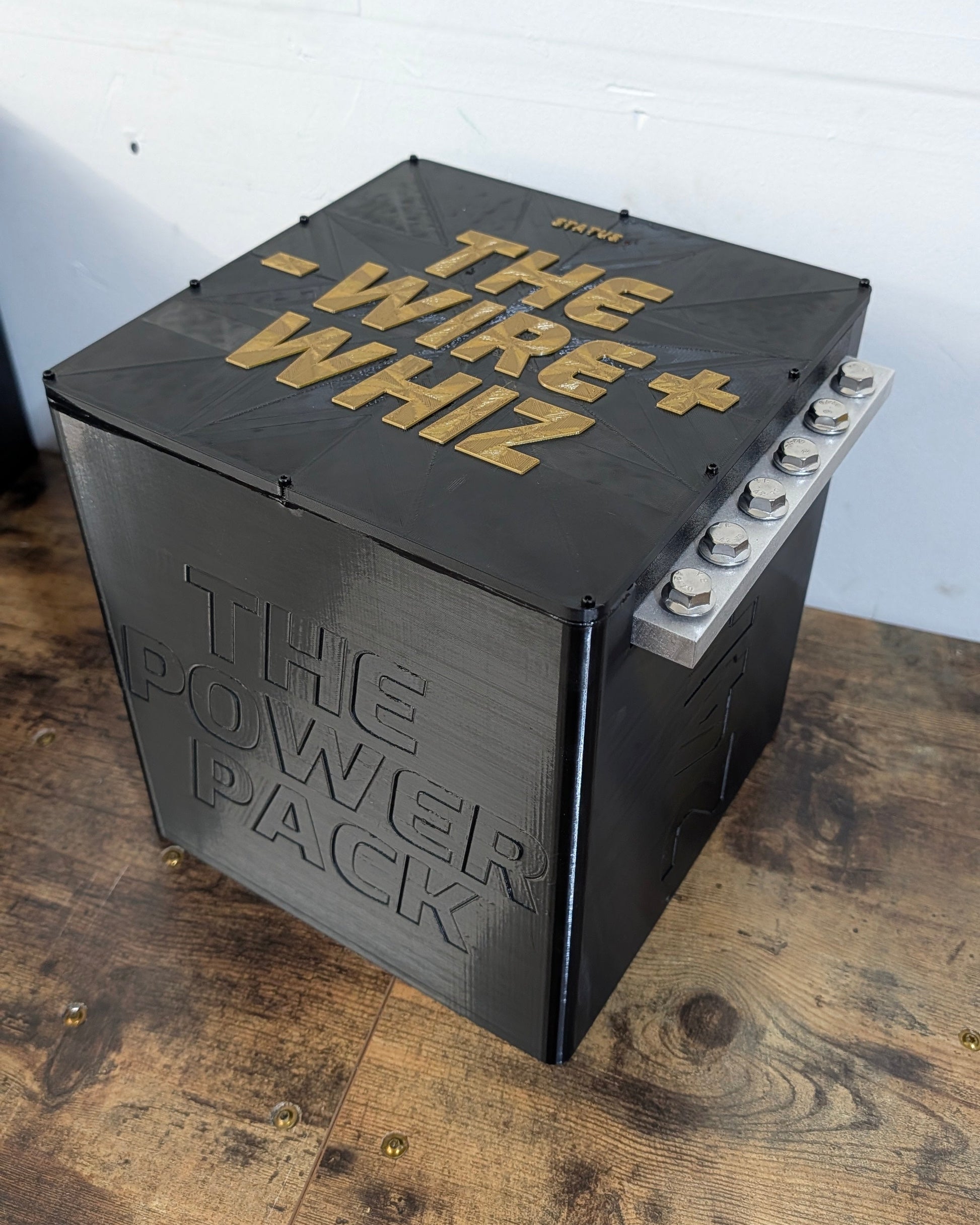

Compact high-output LiFePO4 lithium battery built for serious car audio systems.
Designed with low internal resistance power cells and copper internal busbars to deliver strong voltage support and reliable performance under heavy bass loads.
Perfect for daily systems, demos, and high-power setups needing fast power delivery with less voltage drop than traditional AGM batteries.
Features
High-output battery pack
Lightweight compact design
Custom high-strength enclosure
Built for car audio applications
Recommended System Support
Up to 19,000 watts of musical output with stock alternator systems
Up to 24,000 watts of musical output with high-output alternator systems
Specifications
Resting Voltage: 13.2V
Max Voltage: 14.6V
Chemistry: LiFePO4
PRE-ORDER NOW. 10 days lead time.
IMPORTANT INSTALLATION REQUIREMENTS
ALWAYS FUSE YOUR SYSTEM
To protect your equipment and vehicle, fuses are required:
Between the battery and amplifier(s)
Between the alternator and battery
On all positive power wire runs
Failure to properly fuse your system may result in equipment damage, fire hazard, or battery failure.
CHARGING INFORMATION
Maximum Charging Voltage: 14.6V
DO NOT exceed 14.6V charging voltage.
Recommended operating voltage range: 13.0V - 14.6V
Before installation, verify that your charging system is functioning properly.
DO NOT use this battery with:
Faulty alternators
Faulty voltage regulators
Unstable charging systems
Charging systems exceeding 14.6V
Overcharging may permanently damage the battery and will void warranty coverage.
INSTALLATION GUIDELINES
Verify correct polarity before connecting the battery.
Use proper wire gauge for your power requirements.
Ensure all terminals are clean and securely tightened.
Secure battery properly to prevent movement or vibration damage.
Protect battery terminals from accidental short circuits.
Never allow metal tools or objects to contact both terminals at the same time.
SAFETY WARNINGS
DO NOT:
Reverse polarity
Short-circuit terminals
Exceed 14.6V charging voltage
Disassemble or modify the battery
Expose battery to fire, extreme heat, or water
Use damaged wiring or loose electrical connections
Operate without proper fusing
Improper installation or misuse may result in battery damage, equipment damage, fire hazard, or personal injury.
WARRANTY INFORMATION
Warranty covers manufacturer defects only.
Warranty does NOT cover damage resulting from:
Overcharging above 14.6V
Reverse polarity
Improper installation
Improper charging systems
Lack of proper fusing
Short circuits
Loose, damaged, or undersized wiring
Physical abuse, impact, or water damage
Unauthorized modifications or disassembly
By installing and using this battery, the purchaser accepts responsibility for proper installation and safe operation.
